Mindshifter.QuaternionCamera Class Reference

QuaternionCamera is a input-based vector camera with support for translations and rotations in both world and local space. More...

Inherits Mindshifter.ICamera.

Inheritance diagram for Mindshifter.QuaternionCamera:

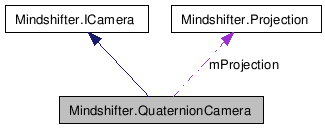

[legend]Collaboration diagram for Mindshifter.QuaternionCamera:

[legend]List of all members.

Public Member Functions
	QuaternionCamera ()
	Creates a new instance of QuaternionCamera with a position at the origin looking down the negative z axis using a perspective projection with a 45 degree field of view, 4/3 aspect ratio, near plane distance of 1 and far plane distance of 1000.
	QuaternionCamera (Vector3 position, Quaternion orientation)
	Creates a new instance of QuaternionCamera with the specified position and orientation using a perspective projection with a 45 degree field of view, 4/3 aspect ratio, near plane distance of 1 and far plane distance of 1000.
	QuaternionCamera (Vector3 position, Quaternion orientation, float fov, float aspect, float near, float far)
	Creates a new instance of QuaternionCamera with a position at the origin using a perspective projection with the specified projection parameters.
	QuaternionCamera (Vector3 position, Quaternion orientation, Rectangle rect, float near, float far)
	Creates a new instance of QuaternionCamera with a psotion at the origin using an orthographic projection with the specified projection parameters.
void	Pitch (float pitchAmount, TransformSpace space)
	Pitches the camera's orientation (x axis rotation).
void	Pitch (float pitchAmount)
	Pitches the camera's orientation in camera space (x axis rotation).
void	Yaw (float yawAmount, TransformSpace space)
	Yaws the camera's orientation (y axis rotation).
void	Yaw (float yawAmount)
	Yaws the camera's orientation in camera space (y axis rotation).
void	Roll (float rollAmount, TransformSpace space)
	Rolls the camera's orientation (z axis rotation).
void	Roll (float rollAmount)
	Rolls the camera's orientation in camera space (z axis rotation).
void	Translate (Vector3 amount, TransformSpace space)
	Translates the camera's position by the specified vector.
void	Translate (Vector3 amount)
	Translates the camera's position by the specified vector in camera space.
void	TranslateX (float amount, TransformSpace space)
	Translates the camera's x position by the specified amount.
void	TranslateX (float amount)
	Translates the camera's x position by the specified amount in camera space.
void	TranslateY (float amount, TransformSpace space)
	Translates the camera's y position by the specified amount.
void	TranslateY (float amount)
	Translates the camera's y position by the specified amount in camera space.
void	TranslateZ (float amount, TransformSpace space)
	Translates the camera's z position by the specified amount.
void	TranslateZ (float amount)
	Translates the camera's z position by the specified amount in camera space.
void	Update (float elapsedSeconds)
	Performs any required updates to the camera's values based on the specified elapsed time.
Ray	GetPickRay (Vector2 position, Viewport viewport)
	Returns a world space ray cast from the specified screen projected position.
Properties
Matrix	ViewMatrix [get]
	Gets the camera's view matrix.
Matrix	InverseViewMatrix [get]
	Gets the camera's inverse view matrix.
Matrix	ProjectionMatrix [get]
	Gets the camera's projection matrix.
Projection	Projection [get]
	Gets the camera's projection.
Vector3	Position [get, set]
	Gets or sets the camera's position.
Quaternion	Orientation [get, set]
	Gets or sets the camera's orientation.
float	X [get, set]
	Gets or sets the camera's world X position.
float	Y [get, set]
	Gets or sets the camera's world Y position.
float	Z [get, set]
	Gets or sets the camera's world Z position.
Vector3	Up [get]
	Gets the camera's up vector.
Vector3	Forward [get]
	Gets the camera's forward vector.
Vector3	Right [get]
	Gets the camera's right vector.
BoundingFrustum	Frustum [get]
	Gets the camera's bounding frustum.
Private Member Functions
void	BuildMatrix ()
	Builds the camera's view matrix.
Private Attributes
Matrix	mViewMatrix
Matrix	mInverseViewMatrix
Projection	mProjection
Vector3	mPosition
Quaternion	mOrientation
bool	mRequiresUpdate

---

Detailed Description

QuaternionCamera is a input-based vector camera with support for translations and rotations in both world and local space.

Definition at line 20 of file QuaternionCamera.cs.

---

Constructor & Destructor Documentation

Mindshifter.QuaternionCamera.QuaternionCamera

(

)

Creates a new instance of QuaternionCamera with a position at the origin looking down the negative z axis using a perspective projection with a 45 degree field of view, 4/3 aspect ratio, near plane distance of 1 and far plane distance of 1000.

Definition at line 196 of file QuaternionCamera.cs.

Mindshifter.QuaternionCamera.QuaternionCamera	(	Vector3	position,
		Quaternion	orientation
	)

Creates a new instance of QuaternionCamera with the specified position and orientation using a perspective projection with a 45 degree field of view, 4/3 aspect ratio, near plane distance of 1 and far plane distance of 1000.

Parameters:

	position	The position of the camera's eye point
	orientation	The orientation of the camera

Definition at line 209 of file QuaternionCamera.cs.

Mindshifter.QuaternionCamera.QuaternionCamera	(	Vector3	position,
		Quaternion	orientation,
		float	fov,
		float	aspect,
		float	near,
		float	far
	)

Creates a new instance of QuaternionCamera with a position at the origin using a perspective projection with the specified projection parameters.

Parameters:

	position	The position of the camera's eye point
	orientation	The orientation of the camera
	fov	The camera's perspective projection field of view
	aspect	The camera's perspective projection aspect ratio
	near	The near frustum plane distance of the camera's projection
	far	The far frustum plane distance of the camera's projection

Definition at line 225 of file QuaternionCamera.cs.

References Mindshifter.QuaternionCamera.mInverseViewMatrix, Mindshifter.QuaternionCamera.mOrientation, Mindshifter.QuaternionCamera.mPosition, Mindshifter.QuaternionCamera.mProjection, Mindshifter.QuaternionCamera.mRequiresUpdate, Mindshifter.QuaternionCamera.mViewMatrix, and Mindshifter.QuaternionCamera.Projection.

Mindshifter.QuaternionCamera.QuaternionCamera	(	Vector3	position,
		Quaternion	orientation,
		Rectangle	rect,
		float	near,
		float	far
	)

Creates a new instance of QuaternionCamera with a psotion at the origin using an orthographic projection with the specified projection parameters.

Parameters:

	position	The position of the camera's eye point
	orientation	The orientation of the camera
	rect	The camera's orthographic projection rectangle
	near	The near frustum plane distance of the camera's projection
	far	The far frustum plane distance of the camera's projection

Definition at line 247 of file QuaternionCamera.cs.

References Mindshifter.QuaternionCamera.mInverseViewMatrix, Mindshifter.QuaternionCamera.mOrientation, Mindshifter.QuaternionCamera.mPosition, Mindshifter.QuaternionCamera.mProjection, Mindshifter.QuaternionCamera.mRequiresUpdate, Mindshifter.QuaternionCamera.mViewMatrix, and Mindshifter.QuaternionCamera.Projection.

---

Member Function Documentation

void Mindshifter.QuaternionCamera.Pitch	(	float	pitchAmount,
		TransformSpace	space
	)

Pitches the camera's orientation (x axis rotation).

Parameters:

	pitchAmount	The angle to pitch the camera's orientation (in radians)
	space	The vector space in which to perform the transform

Definition at line 265 of file QuaternionCamera.cs.

References Mindshifter.QuaternionCamera.BuildMatrix(), Mindshifter.QuaternionCamera.mInverseViewMatrix, Mindshifter.QuaternionCamera.mOrientation, and Mindshifter.QuaternionCamera.mRequiresUpdate.

Referenced by Mindshifter.QuaternionCamera.Pitch().

void Mindshifter.QuaternionCamera.Pitch

(

float

pitchAmount

)

Pitches the camera's orientation in camera space (x axis rotation).

Parameters:

pitchAmount

The angle to pitch the camera's orientation (in radians)

Definition at line 288 of file QuaternionCamera.cs.

References Mindshifter.QuaternionCamera.Pitch().

void Mindshifter.QuaternionCamera.Yaw	(	float	yawAmount,
		TransformSpace	space
	)

Yaws the camera's orientation (y axis rotation).

Parameters:

	yawAmount	The angle to yaw the camera's orientation (in radians)
	space	The vector space in which to perform the transform

Definition at line 298 of file QuaternionCamera.cs.

References Mindshifter.QuaternionCamera.BuildMatrix(), Mindshifter.QuaternionCamera.mInverseViewMatrix, Mindshifter.QuaternionCamera.mOrientation, and Mindshifter.QuaternionCamera.mRequiresUpdate.

Referenced by Mindshifter.QuaternionCamera.Yaw().

void Mindshifter.QuaternionCamera.Yaw

(

float

yawAmount

)

Yaws the camera's orientation in camera space (y axis rotation).

Parameters:

yawAmount

The angle to yaw the camera's orientation (in radians)

Definition at line 321 of file QuaternionCamera.cs.

References Mindshifter.QuaternionCamera.Yaw().

void Mindshifter.QuaternionCamera.Roll	(	float	rollAmount,
		TransformSpace	space
	)

Rolls the camera's orientation (z axis rotation).

Parameters:

	rollAmount	The angle to roll the camera's orientation (in radians)
	space	The vector space in which to perform the transform

Definition at line 331 of file QuaternionCamera.cs.

References Mindshifter.QuaternionCamera.BuildMatrix(), Mindshifter.QuaternionCamera.mInverseViewMatrix, Mindshifter.QuaternionCamera.mOrientation, and Mindshifter.QuaternionCamera.mRequiresUpdate.

Referenced by Mindshifter.QuaternionCamera.Roll().

void Mindshifter.QuaternionCamera.Roll

(

float

rollAmount

)

Rolls the camera's orientation in camera space (z axis rotation).

Parameters:

rollAmount

The angle to roll the camera's orientation (in radians)

Definition at line 354 of file QuaternionCamera.cs.

References Mindshifter.QuaternionCamera.Roll().

void Mindshifter.QuaternionCamera.Translate	(	Vector3	amount,
		TransformSpace	space
	)

Translates the camera's position by the specified vector.

Parameters:

	amount	The amount by which to translate the camera's position
	space	The vector space in which to perform the transform

Definition at line 364 of file QuaternionCamera.cs.

References Mindshifter.QuaternionCamera.BuildMatrix(), Mindshifter.QuaternionCamera.mInverseViewMatrix, Mindshifter.QuaternionCamera.mPosition, and Mindshifter.QuaternionCamera.mRequiresUpdate.

Referenced by Mindshifter.QuaternionCamera.Translate().

void Mindshifter.QuaternionCamera.Translate

(

Vector3

amount

)

Translates the camera's position by the specified vector in camera space.

Parameters:

amount

The amount by which to translate the camera's position

Definition at line 388 of file QuaternionCamera.cs.

References Mindshifter.QuaternionCamera.Translate().

void Mindshifter.QuaternionCamera.TranslateX	(	float	amount,
		TransformSpace	space
	)

Translates the camera's x position by the specified amount.

Parameters:

	amount	The amount by which to translate the camera's x position
	space	The vector space in which to perform the transform

Definition at line 398 of file QuaternionCamera.cs.

References Mindshifter.QuaternionCamera.BuildMatrix(), Mindshifter.QuaternionCamera.mInverseViewMatrix, Mindshifter.QuaternionCamera.mPosition, and Mindshifter.QuaternionCamera.mRequiresUpdate.

Referenced by Mindshifter.QuaternionCamera.TranslateX().

void Mindshifter.QuaternionCamera.TranslateX

(

float

amount

)

Translates the camera's x position by the specified amount in camera space.

Parameters:

amount

The amount by which to translate the camera's x position

Definition at line 421 of file QuaternionCamera.cs.

References Mindshifter.QuaternionCamera.TranslateX().

void Mindshifter.QuaternionCamera.TranslateY	(	float	amount,
		TransformSpace	space
	)

Translates the camera's y position by the specified amount.

Parameters:

	amount	The amount by which to translate the camera's y position
	space	The vector space in which to perform the transform

Definition at line 431 of file QuaternionCamera.cs.

References Mindshifter.QuaternionCamera.BuildMatrix(), Mindshifter.QuaternionCamera.mInverseViewMatrix, Mindshifter.QuaternionCamera.mPosition, and Mindshifter.QuaternionCamera.mRequiresUpdate.

Referenced by Mindshifter.QuaternionCamera.TranslateY().

void Mindshifter.QuaternionCamera.TranslateY

(

float

amount

)

Translates the camera's y position by the specified amount in camera space.

Parameters:

amount

The amount by which to translate the camera's y position

Definition at line 454 of file QuaternionCamera.cs.

References Mindshifter.QuaternionCamera.TranslateY().

void Mindshifter.QuaternionCamera.TranslateZ	(	float	amount,
		TransformSpace	space
	)

Translates the camera's z position by the specified amount.

Parameters:

	amount	The amount by which to translate the camera's z position
	space	The vector space in which to perform the transform

Definition at line 464 of file QuaternionCamera.cs.

References Mindshifter.QuaternionCamera.BuildMatrix(), Mindshifter.QuaternionCamera.mInverseViewMatrix, Mindshifter.QuaternionCamera.mPosition, and Mindshifter.QuaternionCamera.mRequiresUpdate.

Referenced by Mindshifter.QuaternionCamera.TranslateZ().

void Mindshifter.QuaternionCamera.TranslateZ

(

float

amount

)

Translates the camera's z position by the specified amount in camera space.

Parameters:

amount

The amount by which to translate the camera's z position

Definition at line 487 of file QuaternionCamera.cs.

References Mindshifter.QuaternionCamera.TranslateZ().

void Mindshifter.QuaternionCamera.BuildMatrix

(

)

[private]

Builds the camera's view matrix.

Definition at line 495 of file QuaternionCamera.cs.

References Mindshifter.QuaternionCamera.mInverseViewMatrix, Mindshifter.QuaternionCamera.mOrientation, Mindshifter.QuaternionCamera.mPosition, Mindshifter.QuaternionCamera.mRequiresUpdate, and Mindshifter.QuaternionCamera.mViewMatrix.

Referenced by Mindshifter.QuaternionCamera.Pitch(), Mindshifter.QuaternionCamera.Roll(), Mindshifter.QuaternionCamera.Translate(), Mindshifter.QuaternionCamera.TranslateX(), Mindshifter.QuaternionCamera.TranslateY(), Mindshifter.QuaternionCamera.TranslateZ(), Mindshifter.QuaternionCamera.Update(), and Mindshifter.QuaternionCamera.Yaw().

void Mindshifter.QuaternionCamera.Update

(

float

elapsedSeconds

)

Performs any required updates to the camera's values based on the specified elapsed time.

Parameters:

elapsedSeconds

The elapsed time in seconds since the last call to Update()

Implements Mindshifter.ICamera.

Definition at line 518 of file QuaternionCamera.cs.

References Mindshifter.QuaternionCamera.BuildMatrix(), and Mindshifter.QuaternionCamera.mRequiresUpdate.

Ray Mindshifter.QuaternionCamera.GetPickRay	(	Vector2	position,
		Viewport	viewport
	)

Returns a world space ray cast from the specified screen projected position.

Parameters:

	position	The position in screen space to cast a ray from
	viewport	The viewport through which to unproject the specified position

Implements Mindshifter.ICamera.

Definition at line 529 of file QuaternionCamera.cs.

References Mindshifter.QuaternionCamera.ProjectionMatrix, and Mindshifter.QuaternionCamera.ViewMatrix.

---

Member Data Documentation

Matrix Mindshifter.QuaternionCamera.mViewMatrix [private]

Definition at line 22 of file QuaternionCamera.cs.

Referenced by Mindshifter.QuaternionCamera.BuildMatrix(), and Mindshifter.QuaternionCamera.QuaternionCamera().

Matrix Mindshifter.QuaternionCamera.mInverseViewMatrix [private]

Definition at line 23 of file QuaternionCamera.cs.

Referenced by Mindshifter.QuaternionCamera.BuildMatrix(), Mindshifter.QuaternionCamera.Pitch(), Mindshifter.QuaternionCamera.QuaternionCamera(), Mindshifter.QuaternionCamera.Roll(), Mindshifter.QuaternionCamera.Translate(), Mindshifter.QuaternionCamera.TranslateX(), Mindshifter.QuaternionCamera.TranslateY(), Mindshifter.QuaternionCamera.TranslateZ(), and Mindshifter.QuaternionCamera.Yaw().

Projection Mindshifter.QuaternionCamera.mProjection [private]

Definition at line 25 of file QuaternionCamera.cs.

Referenced by Mindshifter.QuaternionCamera.QuaternionCamera().

Vector3 Mindshifter.QuaternionCamera.mPosition [private]

Definition at line 27 of file QuaternionCamera.cs.

Referenced by Mindshifter.QuaternionCamera.BuildMatrix(), Mindshifter.QuaternionCamera.QuaternionCamera(), Mindshifter.QuaternionCamera.Translate(), Mindshifter.QuaternionCamera.TranslateX(), Mindshifter.QuaternionCamera.TranslateY(), and Mindshifter.QuaternionCamera.TranslateZ().

Quaternion Mindshifter.QuaternionCamera.mOrientation [private]

Definition at line 28 of file QuaternionCamera.cs.

Referenced by Mindshifter.QuaternionCamera.BuildMatrix(), Mindshifter.QuaternionCamera.Pitch(), Mindshifter.QuaternionCamera.QuaternionCamera(), Mindshifter.QuaternionCamera.Roll(), and Mindshifter.QuaternionCamera.Yaw().

bool Mindshifter.QuaternionCamera.mRequiresUpdate [private]

Definition at line 30 of file QuaternionCamera.cs.

Referenced by Mindshifter.QuaternionCamera.BuildMatrix(), Mindshifter.QuaternionCamera.Pitch(), Mindshifter.QuaternionCamera.QuaternionCamera(), Mindshifter.QuaternionCamera.Roll(), Mindshifter.QuaternionCamera.Translate(), Mindshifter.QuaternionCamera.TranslateX(), Mindshifter.QuaternionCamera.TranslateY(), Mindshifter.QuaternionCamera.TranslateZ(), Mindshifter.QuaternionCamera.Update(), and Mindshifter.QuaternionCamera.Yaw().

---

Property Documentation

Matrix Mindshifter.QuaternionCamera.ViewMatrix [get]

Gets the camera's view matrix.

Implements Mindshifter.ICamera.

Definition at line 36 of file QuaternionCamera.cs.

Referenced by Mindshifter.QuaternionCamera.GetPickRay().

Matrix Mindshifter.QuaternionCamera.InverseViewMatrix [get]

Gets the camera's inverse view matrix.

Definition at line 50 of file QuaternionCamera.cs.

Matrix Mindshifter.QuaternionCamera.ProjectionMatrix [get]

Gets the camera's projection matrix.

Implements Mindshifter.ICamera.

Definition at line 64 of file QuaternionCamera.cs.

Referenced by Mindshifter.QuaternionCamera.GetPickRay().

Projection Mindshifter.QuaternionCamera.Projection [get]

Gets the camera's projection.

Definition at line 72 of file QuaternionCamera.cs.

Referenced by Mindshifter.QuaternionCamera.QuaternionCamera().

Vector3 Mindshifter.QuaternionCamera.Position [get, set]

Gets or sets the camera's position.

Implements Mindshifter.ICamera.

Definition at line 80 of file QuaternionCamera.cs.

Quaternion Mindshifter.QuaternionCamera.Orientation [get, set]

Gets or sets the camera's orientation.

Definition at line 93 of file QuaternionCamera.cs.

float Mindshifter.QuaternionCamera.X [get, set]

Gets or sets the camera's world X position.

Definition at line 106 of file QuaternionCamera.cs.

float Mindshifter.QuaternionCamera.Y [get, set]

Gets or sets the camera's world Y position.

Definition at line 119 of file QuaternionCamera.cs.

float Mindshifter.QuaternionCamera.Z [get, set]

Gets or sets the camera's world Z position.

Definition at line 132 of file QuaternionCamera.cs.

Vector3 Mindshifter.QuaternionCamera.Up [get]

Gets the camera's up vector.

Definition at line 145 of file QuaternionCamera.cs.

Vector3 Mindshifter.QuaternionCamera.Forward [get]

Gets the camera's forward vector.

Definition at line 159 of file QuaternionCamera.cs.

Vector3 Mindshifter.QuaternionCamera.Right [get]

Gets the camera's right vector.

Definition at line 173 of file QuaternionCamera.cs.

BoundingFrustum Mindshifter.QuaternionCamera.Frustum [get]

Gets the camera's bounding frustum.

Implements Mindshifter.ICamera.

Definition at line 187 of file QuaternionCamera.cs.

---

The documentation for this class was generated from the following file:

• Desktop/Dev/Cameras/Cameras/QuaternionCamera.cs

---
